Insulation

Tapes

• T303 BCO Foil 15m Tape
• Kaiflex 3x50mm ST 15m Tape
• Kaiflex 3x50mm EPDM 15m Tape
• ArmaFlex 3x50mm EL 15m Tape
• ArmaFlex 3x50mm MC 15m Tape

Adhesives

• KaiFlex 414 Adhesive 250ml
• KaiFlex 414 Adhesive 750ml
• ArmaFlex 520 Adhesive 250ml
• ArmaFlex 520 Adhesive 500ml

PIB Sheeting

• Davant 15x1m Black PIB Sheeting

Insulated Pipe Supports

• Kooltherm Phenolic Pipe Supports
• ArmaFix X Pipe Supports

Varying considerably depending on the application, these evolving requirements lately focus on passive fire protection, where the UK-made products of Armacell excel. For new systems or renovations, Armacell’s insulation solutions adapt to a wide range of environments, effectively contributing to energy savings, fire safety and cleaner, quieter, healthier man-made spaces.

Armacell insulation materials offer reliable condensation prevention, sound control, corrosion prevention and protection from mechanical stress. Closed-cell elastomeric insulation materials from Armacell feature low thermal conductivity and high water vapour diffusion resistance to meet the most stringent technical standards. Armacell also manufactures non-halogen and low smoke products for heightened fire safety requirements.

BSS are able to supply Armacell ArmaFlex for insulation. Contact your local BSS branch to order.

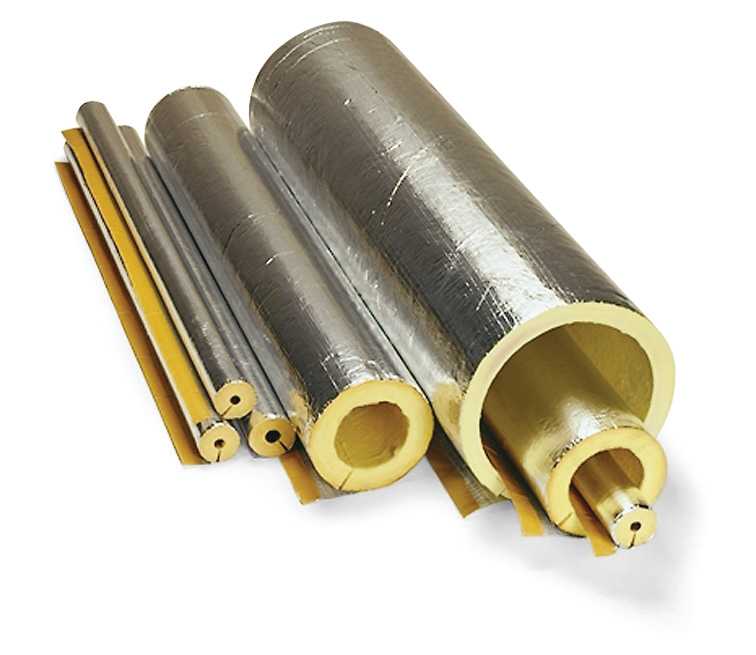

Isover mineral fibre pipe insulation for thermal and acoustic insulation of pipework. Isover foil pipe sections are strong, lightweight, pre-formed snap on sections with a reinforced foil covering.

• Lightweight
• Preformed snap on sections
• Aluminium foil covered
• Class “O” fire rated
• Chemically neutral - no need to bore coat
• High thermal/acoustic values
• Environmentally friendly
• Contains special water repellent additives - will not absorb water therefore will not accelerate corrosion
• Performance will not deteriorate over time - long product life
• Manufactured from mineral wool
• Durable with constant density and thickness around the bore

For use on low temperature hot water, direct heating/hot water systems, steam and high temperature hot water, chilled/cold water systems, and flue gas ducting Suitable for continuous service temperatures up to 500°C. The temperature on the aluminium facing should not exceed 80°C. For use at temperatures over 230°C please contact our Technical department. The products can also be used in below ambient conditions, provided that a 100% vapour barrier is maintained.

To view our insulation tables please click below:

Kaimann Kaiflex ST class "O" is designed to prevent condensation and energy losses on pipework which can also effectively eliminate water vapour migration and retain outstanding performance over the entire system life.

• Flexible closed cell rubber insulation
• Inherently resistant to corrosion
• Excellent thermal values which minimise energy loss
• Acoustic function, absorbing sound and dampening duct wall vibration
• Inherent resistance to microbial growth
• Available with self-adhesive strips for faster installation
• Class “O” fire rated
• Long life product
• Manufactured from NBR rubber which is completely dust and fibre free
• For use on air-conditioning, refrigeration, chilled water, heating and hot water pipes and air distribution ductwork
• Available in slit, unslit and self-seal
• Available in 2m or 1.2m lengths

Kaimann Kaiflex EPDM Plus designed to resist high temperatures and UV radiation.

• Closed cell structure with in-built water vapour barrier
• Can be used on low pressure steam pipework but in addition pipework that is operated by very low temperatures or pipework and equipment that intermittently cycles between hot and cold
• Suitable for use at temperatures up to 150°C
• UV resistant for external use
• Naturally resistant to moisture and chemicals
• Inherently resistant to corrosion
• Dust and fibre free
• 2m lengths

Kaifoam PE pipe insulation saves energy and offsets pipe freezing in domestic applications and hot/cold water systems.

• Energy saving for domestic pipework
• Easily installed without tape or adhesive
• Short payback period realises economic saving quickly
• Closed cell polyethylene structure
• Dust and fibre free
• Highly stable
• Non brittle
• Non reactive which makes it suitable for use on all domestic pipework
• Off sets pipe freezing over the entire life of a domestic system.
• 2m and 1m lengths

To view our insulation tables please click below:

Kooltherm FM HVAC and building services insulation is designed to improve energy performance and reduce energy costs. With a variety of thicknesses available this product may be used on mild steel stainless steel, carbon steel, copper and plastic pipework.

• Flexible closed cell rubber insulation
• Highly resistant to moisture penetration
• Closed cell fibre free structure which makes it unaffected by air filtration which can reduce performance
• Fast and simple installation
• Improves the energy performance in buildings and reduce energy costs
• Durable
• CF marked in accordance to BS EN 14314
• 1m lengths

To view our insulation tables please click below:
